详解各种船用救生筏静水压力释放器的原理

发布时间：2025-05-10 06:12

皮筏漂流带来清凉刺激，释放生活压力 #生活乐趣# #生活体验# #户外生活冒险#

“HAMMAR - H20”型静水压力释放装置

HAMMAR - H20 HYDROSTATIC RELEASE UNIT

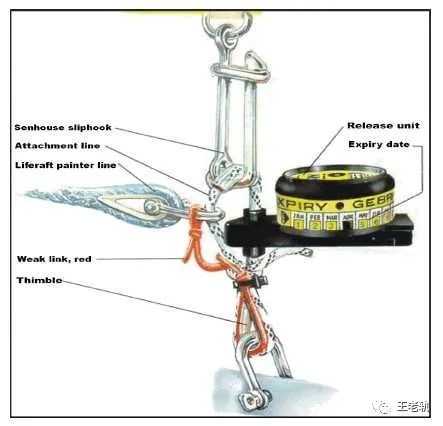

本装置由两头带绳环的绳索，释放机械装置和红色的易断绳组成。

Unit consists of a double looped rope line,a release mechanism and a red colored weak link.

无须维修服务。

Does not need servicing.

每两年必须更新。

Must be replaced after two years.

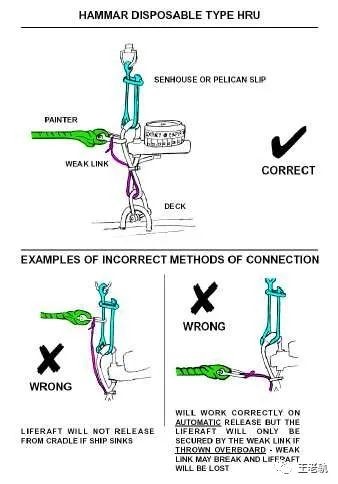

安装 (参考上图)

Installation (Refer to figure above)

1. 检查装置的有效期是否正确标注。如不正确标注,不同的主管机关有权不接受。

Check the unit for proper marking of yearand month of expiry. If the unit is not properly marked, it will not beacceptable to the various authorities.

2. 将该装置用卸扣系固于甲板或鞍座的牢固点上。卸扣必须穿过一包括“易断绳”的眼环和附属索的下环部分。

Secure the unit with a shackle to a strongpoint on the deck or on the cradle. The shackle should pass through the thimblethat contains the “weak link” and the lower loop of the attachment line.

3. 用另一卸扣穿过附属索的较大绳环和“易断绳”的上部绳环以及救生筏的筏缆。

Use another shackle and pass it through thelarger loop of the attachment line, upper loop of the “weak link” and thepainter line of the life raft.

4. 将救生筏置于鞍座。将固定绑扎钢丝/皮带从外舷外经过筏顶，并用搭扣连接于 HRU 的附属绳索上。确认当救生筏释放后不会被船上的障碍物所阻碍。

Place the life raft in its cradle. Pass thelashing wire / strap from the outboard side over the life raft and secure it tothe attachment line of the HRU using a senhouse slip hook. Ensure that thepainter will not get snagged on any obstruction on board when the life raftgets released.

自动释放（参考下图）

Automatic Release (Refer to figures below)

静水压力释放装置在水面下 1.5 至 4 米深度时启动将救生筏从其绑扎状态释放。此时筏缆与附属索的上部绳环脱离，仅通过易断绳与船舶相连。

The unit will activate at a depth of 1.5 to4 meters below the water and release the raft from its lashings. When thishappens the painter becomes free from the upper part of the attachment line andwill remain attached to the ship only by the weak link.

救生筏浮上水面，拉紧筏缆并启动膨胀救生筏。

The life raft floats to the surface and thestretched painter activates the inflation of the life raft.

易断绳受浮力后断开，将筏缆释放，从而使救生筏脱离沉船。

The weak link breaks thus setting thepainter free and the life raft will be free from the sinking ship.

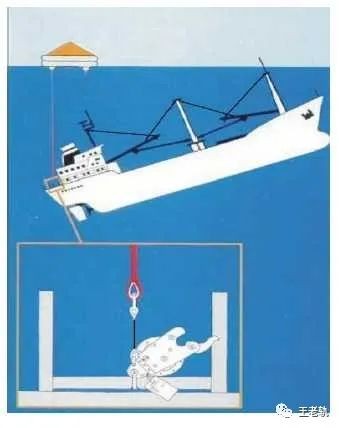

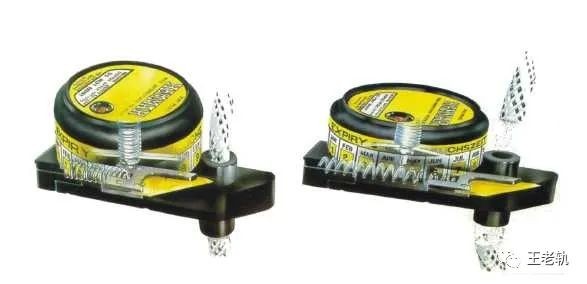

“ Hammar HRU”的操作 – 静水压力将弹簧释放，带动所附的刀片割断附绳，从而将救生筏从其存放处释放。

Operation of Hammar HRU – water pressurereleases the spring and attached sharp knife cutting the attachment line thusreleasing the life raft from the container.

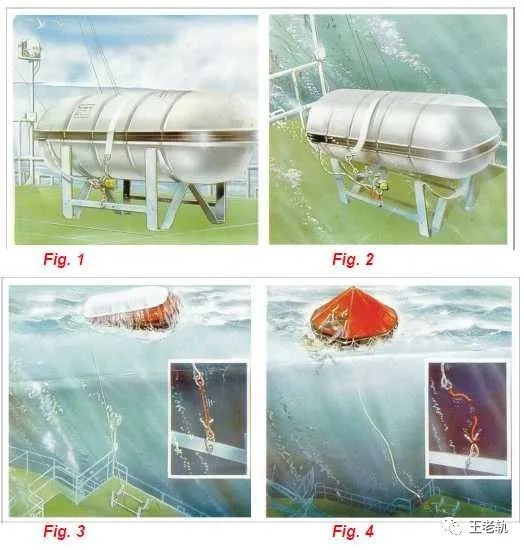

图 1 – “HAMMAAR H20”的白色强力绳系固于甲板或鞍座，并用一滑钩与救生筏的绑扎带连接。救生筏筏缆与易断绳索和白色强力绳用卸扣连接。

Fig. 1 – White strong rope of HAMMAAR H20secured to deck or liferaft- cradle and attached to life raft lashing with aslip hook. Life raft painter line shackled to weak-link and around strong whiterope.

图 2 – 如船舶下沉，水压将启动刀片割断白色强力绳，救生筏上浮。

Fig. 2 – If the ship sinks, the waterpressure will activate the sharp knife which cuts the strong rope and the liferaft will float free.

图 3 – 当船舶下沉时，救生筏筏缆受浮力作用拉紧，并启动膨胀救生筏。

Fig. 3 – As the ship sinks, the life raftpainter will be stretched and the life raft starts to inflate.

图 4 –易断绳索断裂，求生者可登上膨胀救生筏。

Fig. 4 –Weak link breaks and survivors canboard the inflated life raft.

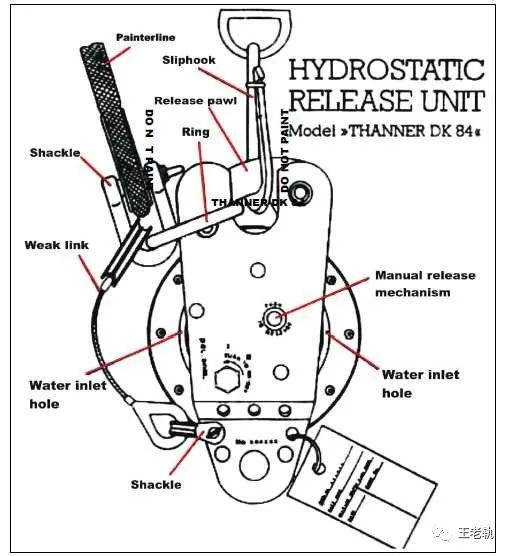

“THANNER DK 84” 型静水压力释放装置

THANNER DK 84 HYDROSTATIC RELEASE UNIT

由防酸性腐蚀的不锈钢材料制成

Made of acid proof stainless steel.

不可油漆.

Should not be painted.

进水口应保持清洁

Water inlet holes to be kept clear.

每年应进行维修保养，证书应保留在船。

Service every year. Certificate of serviceto be available on board.

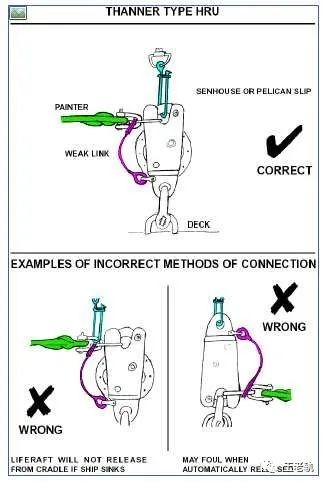

这类型号配备有一眼环，筏缆和易断绳索用一卸扣与眼环连接。

In above model, a 'ring’ is provided towhich the painter and weak link is attached using a shackle.

以上型号配备卸扣用于直接连接筏缆和易断绳索，不配备眼环。

In above model a shackle is provided towhich the painter line and weak link is attached directly. No 'ring’ isprovided

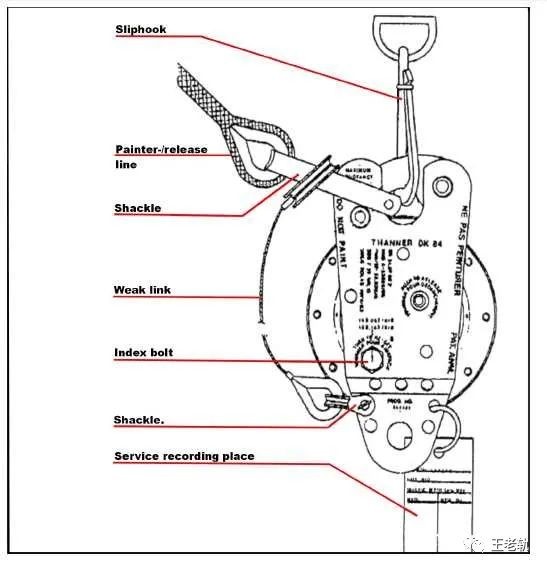

安装 (参考上图)

Installation (Ref to figures above)

将 HRU 用最小破断力为 15KN 的卸扣固定于鞍座的横档或甲板的牢固点上。

Secure the lower part of the HRU to thecrosspiece of the cradle or a strong point on the deck by means of a shacklewith a minimum breaking strength of 15 kN.

推动手动释放机械打开“释放制转杆。

Open the „release pawl‟ at the top of theHRU by pushing in the manual release mechanism.

将眼环推入开口，将“释放制转杆”转回至初始位置。如为带“卸扣”的模式，则“卸扣”可在不打开“释放制转杆”就可安装。

Insert the „ring‟ in the gap and turn the„release pawl‟ back to its initial position. In the case of the model with the„shackle‟, the „shackle‟ can be attached without opening the „release pawl‟.

当“释放制转杆”在闭合位置时，用 17MM 扳手将“指示螺栓”转至位置”！”。会发出“咔”的一声表示“释放制转杆”已锁定在闭合位置。

With the „release pawl‟ in the closedposition, turn the „index bolt‟ back to position I using a 17 mm wrench. A“click” should be heard to confirm that the „release pawl‟ is locked in theclosed position.

用卸扣连接筏缆和易断绳索至配备的眼环上。如为带“卸扣”的型号，则筏缆和易断绳索应直接连接至静水压力释放装置上。

Connect the painter line and weak link tothe „ring‟ by means of a shackle. In the case of the model with the „shackle‟,the painter line and weak link should be attached directly.

用卸扣将另一头的易断绳索连接到静水压力释放装置的下部。

Connect the other end of the weak link tothe lower part of the HRU by means of a shackle.

用搭扣将救生筏外壳绑扎带连接到“释放制转杆”上。

Connect the life raft container lashing tothe „release pawl‟ by means of a senhouse slip hook.

自动释放：

Automatic release

当船舶下沉至水面下 2-4 米时，水压通过进水口打开“释放制转杆”。

When the ship is sinking, the waterpressure through the water inlet holes opens the „release pawl‟ at a depth of 2to 4 meter below the surface.

筏体绑扎带被脱开，将救生筏从鞍座释放出来。

The raft container lashing becomes free andreleases the raft from the cradle.

连接筏缆和易断绳索的“眼环”或“卸扣”也被一同释放。

The „ring‟ or „shackle‟ to which thepainter line and the weak link are attached also becomes free.

筏缆此时仅通过系在静水压力释放装置底部的易断绳索与沉船相连。

The painter will now be attached to thesinking ship by only the weak link which is secured to the bottom of the HRU.

当水深超过筏缆长度时，易断绳索的强度足够将筏缆从筏体拉出，并启动膨胀救生筏。（看下图）

When the water depth exceeds the length ofthe painter line, the weak link is strong enough to pull out the painter linefrom the container and inflate the life raft. (See figure below).

当救生筏启动膨胀后，浮力导致易断绳索破断，将救生筏释放至水面。

Once the life raft is inflated, thebuoyancy causes the weak link to break and the life raft floats free to thesurface of the water.

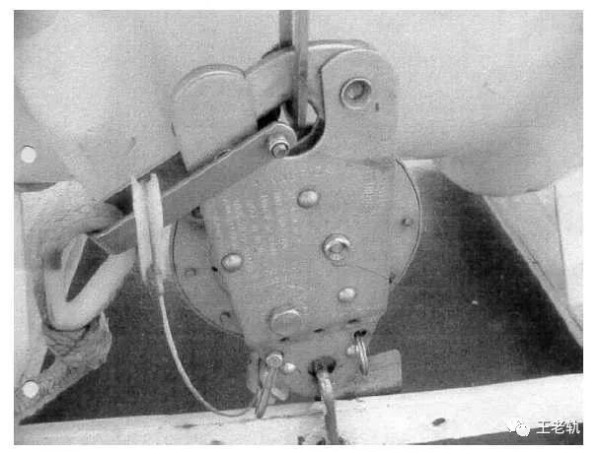

某船配备的“Thanner Dk 84”型静水压力释放装置（带卸扣）

Thanner Dk 84 HRU model with „shackle‟fitted on board a ship

某船配备的“Thanner Dk 84”型静水压力释放装置（带卸扣）

Thanner Dk 84 HRU model with „shackle‟ fitted on board a ship.

“TOYO TIRE & RUBBER CO. LTD”制造的静水压力释放装置 HRU – MSK-008 型号

TOYO TIRE & RUBBER CO. LTD HRU – ModelMSK-008.

可以是“无易断绳索”或“外部易断绳索”类型。

Can be „No weak link‟ or „External weaklink‟ system type.

手动释放时无按钮或搭扣装备。

No push button or senhouse sliphookarrangement provided for manual release.

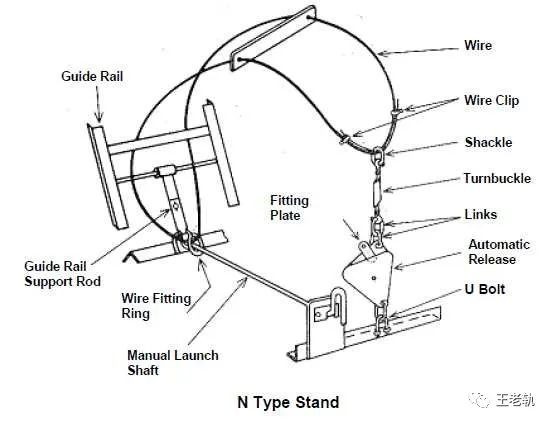

安放在“N“形底座上。（见下图）

Fitted on a special type of stand called„N‟ type stand (see figure below).

N 形底座装备有一手动释放轴。

The „N‟ type stand is provided with amanual launch shaft.

救生筏在抽出释放轴后被手动释放入水。

The raft is released into the water bypulling out the launch shaft on the stand.

此类 “HRU”由膜盒，扳机 A，扳机 B，扳机 C 和用于将 HRU 固定在底座的带卸扣的“U”形螺栓。（见下图）

The „HRU‟ consists of the box diaphragm,Trigger A, Trigger B, Trigger C and a „U‟ bolt arrangement with shackle forsecuring to the stand (see figure below).

不能油漆

Should not be painted.

进水孔保持清洁

Water inlet holes to be kept clear.

每年送岸维护,检修证书留船

Service every year. Certificate of serviceto be available on board.

安装:

Installation:

将 HRU 用“U”形螺栓安装于“N” 形底座的横档。

Secure the HRU to the crosspiece of the „N‟type stand with the „U‟ bolt.

将灰色标识的扳机 A 与卸扣相连。

Fit a shackle to Trigger A which is coloredgrey.

将救生筏外壳绑扎带穿过卸扣并收紧绑扎带。

Pass the container lashing wire throughthis shackle and tighten the lashing.

如为“无易断绳索”类型 – 将红色启动绳与鞍座上的有眼螺栓相连，白色的筏缆与同漆为白色的扳机 C 相连（见下图）。

In the case of „No weak link‟ system type -make fast the red colored operating cord to the eyebolt provided in the cradlestand and make fast the white colored painter to Trigger C which is alsocolored white (see figure below).

如为“外部易断绳索”类型 –将筏缆与同漆为白色的扳机 C 相连，筏缆应附有与鞍座相连的易断绳索（见下图）。

In the case of „External weak link‟ systemtype – make fast the painter to Trigger C and the painter will have a weak linkattached which should be made fast to the cradle (see figure below).

自动释放：

Automatic release:

当船舶下沉时，水压通过进水口释放扳机 A 和扳机 C。

When the ship is sinking, the waterpressure through the water inlet holes will release Trigger A and Trigger C.

救生筏箱绑扎带被脱开，将救生筏从鞍座释放出来。

be and the from

life the

如为“无易断绳索”类型 –因筏缆与已被释放的扳机 C 相连，启动绳受拉启动膨胀救生筏，救生筏与沉船分离。

In the case of the „No weak link‟ system –the operating cord will get pulled and inflate the life raft. Since the painteris made fast to Trigger C which has already been released, the life raft isfree from the sinking ship.

如为“外部易断绳索”类型 –因扳机 C 被释放，与扳机 C 相连的筏缆仅通过易断绳索与船舶相连，易断绳索的强度大到足够受拉后启动膨胀救生筏。当救生筏膨胀后，其浮力将易断绳索扯断，救生筏从沉船脱开上浮。

In the case of the „External weak link‟system – on release of Trigger C, the painter will still be attached to theship by means of the weak link which is strong enough to ensure that thepainter inflates the life raft. Once the life raft is inflated, the buoyancy ofthe life raft will break the weak link and thus set the life raft free from thesinking ship.

手动释放:

Manual release:

将手动释放轴抽出。

The launch shaft release handle is pulledout.

筏体绑扎钢丝被释放。

The wire lashings of the containers getreleased.

筏体落入海中。

The container drops into the sea.

如为“外部易断绳索”类型 –救生筏由启动绳受拉启动膨胀。

In the case of the „No weak link‟ system –the life raft will get inflated by the operating cord.

如为“外部易断绳索”类型 –救生筏由筏缆受拉启动膨胀。

In the case of the „External weak linksystem – the life raft will get inflated by the painter.

在以上两种方式时，如救生筏抵达水面后仍未膨胀，此时应将松驰的筏缆或启动绳从外壳中拉出，然后猛力抽动筏缆或操作绳启动膨胀救生筏。

In both the above cases, if the life raftdoes not start inflating on reaching the water, pull up the slack on theoperating cord or the painter as the case may be and give a sharp tug.

在以上两种方式救生筏都通过筏缆与船舶相连。

In both the cases the life raft remainsconnected to the ship by means of the painter.

BERWYN 静水压力释放装置 HRU–Mk9 型号

BERWYN HYDROSTATIC RELEASE UNIT – Mk9

“外部易断绳索”系统型。

„External weak link‟ system type.

ike the

aacode to the year

安装:

Installation:

在固定位置底部直接安装甲板固定板或固定架。

Attach the deck fixing plate to the deck ormounting frame in a position directly below the lashing.

将 HRU 用卸扣固定在甲板固定板或固定架上。

Attach the HRU to the deck fixing plate bymeans of a shackle.

在 HRU 的上部连接一卸扣。

Attach a shackle to the upper part of theHRU also.

将筏体绑扎带从外舷通过救生筏上部后，通过搭扣与 HRU 的附带绳连接固定。

Pass the securing strap from the outboardside over the liferaft and secure it to the attachment line of the HRU using asenhouse sliphook.

将筏缆用双半结和末端插结或绳夹系固在钢质“O”环上。

Secure the painter to the steel „O‟ ringwith two half hitch knots and whip or clip the ends.

确认易断绳索固定在“O”环和 HRU 下部的开口之间。

Ensure that the weak link is securedbetween the „O‟ ring and the hole at the bottom of the HRU.

自动释放：

Automatic release:

当船舶下沉至水面下 2-4 米时，HRU启动将救生筏从固定位置释放出来。

The unit will activate at a depth of 2.0 to4 meters below the water and release the raft from its lashings.

连接筏缆和易断绳索的钢质“O”环也被释放，筏缆此时仅通过易断绳索与下沉船舶相连。

The steel „O‟ ring attached to the painterand the weak link also is released and thus the painter now remains attached tothe ship only by the weak link.

救生筏上浮至水面后，拉紧筏缆启动膨胀救生筏。

The life raft floats to the surface and thestretched painter activates the inflation of the life raft.

当救生筏启动膨胀后，浮力导致易断绳索破断，将救生筏与沉船脱开。

The weak link breaks thus setting thepainter free and the life raft will be free from the sinking ship.

手动释放：

Manual release:

打开搭扣，并将筏体绑扎带解除。

Release the slip hook and clear thelashings from the life raft.

将筏体推落海中。

Let the raft drop into the water.

救生筏仍通过与 HRU 连接的筏缆与船舶相连。

Raft remains secured to the ship by thepainter line which is secured to the HRU.

将松驰的筏缆或操作绳从外壳中拉出，然后猛力抽动筏缆或操作绳启动膨胀救生筏。

Pull up the slack of the painter line tillit is taut and then give it a sharp tug to inflate the life raft.

BERWYN 静水压力释放装置 HRU–Mk7 型号

BERWYN HYDROSTATIC RELEASE UNIT – Mk7

“外部易断绳索”系统型。

„External weak link‟ system type.

不可油漆

Should not be painted.

进水口应保持畅通

Water inlet holes to be kept clear.

每年应进行维修保养，证书应保留在船。

Service every year. Certificate of serviceto be available on board.

安装，自动和手动释放：

Installation, Automatic release and Manualrelease:

在固定位置底部直接安装甲板固定板或固定架。

Attach the deck fixing plate to the deck ormounting frame in a position directly below the lashing.

将 HRU 用卸扣固定在甲板固定板或固定架上。

Attach the HRU to the deck fixing plate bymeans of a shackle.

在 HRU 的上部连接一卸扣。

Attach a shackle to the upper part of theHRU also.

将筏体绑扎带从外舷通过救生筏上部后，通过一搭扣与 HRU 的附带绳连接固定。

Pass the securing strap from the outboardside over the liferaft and secure it to the attachment line of the HRU using asenhouse sliphook.

将筏缆用双半结系固在钢质“O”环上,端部结扎处理。

Secure the painter to the steel „O‟ ringwith two half hitch knots and whip or clip the ends.

确认易断绳索固定在“O”环和 HRU 上部的开口之间。

Ensure that the weak link is secured betweenthe „O‟ ring and the hole at the top of the HRU.

安装在某船的 Berwyn Marine Mk 7 HRU。

Berwyn Marine Mk 7 HRU fitted on board aship.

最大水深达 4 米时 HRU 启动。救生筏上浮，抽出插销螺杆。救生筏此时仅以易断绳索和筏缆与母船相连。

At upto 4m water pressure activates HRU.Life raft floats, withdrawing drawbolt. Liferaft is now only connected tovessel by weak link and painter.

救生筏脱离属具/释放钩

Liferaft Disengaging Gear / Release Hook
